Descrizione

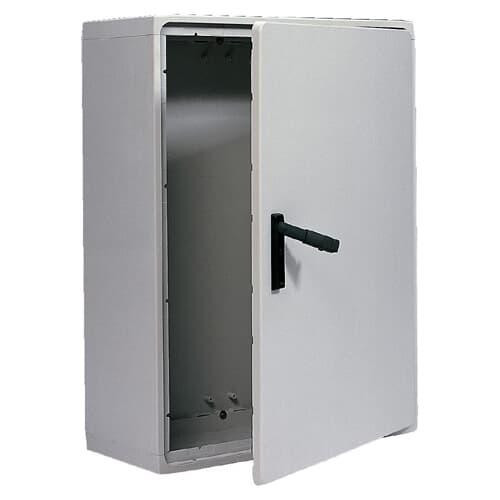

Cabinets are delivered assembled. The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP65 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth. Rated insulation voltage Ui= 1000VPSS530 Cabinet 1250x750x320 with continuous doorIP65, IK10
Caratteristiche tecniche
colore
Grigio
larghezza (mm)
750
altezza (mm)
1250
profondità (mm)
320
numero RAL
7035
con piastra di montaggio
NO
numero di porte
1
numero di serrature
1
prestampaggi in rilievo
NO
qualità del materiale
GRP (plastica rinforzata con fibra di vetro)
materiale
Plastica
resistenza agli urti
IK10
grado di protezione (IP)
IP65
esecuzione della superficie
Non trattato
con parte superiore
NO
coperchio trasparente
NO
tipo di protezione (NEMA)
4X
max carico ammissibile della custodia secondo IEC 62208 (N)
10791
max carico ammissibile delle porte secondo IEC 62208 (N)
7848
max carico ammissibile della piastra di montaggio secondo IEC 62208 (N)
10791
