Descrizione

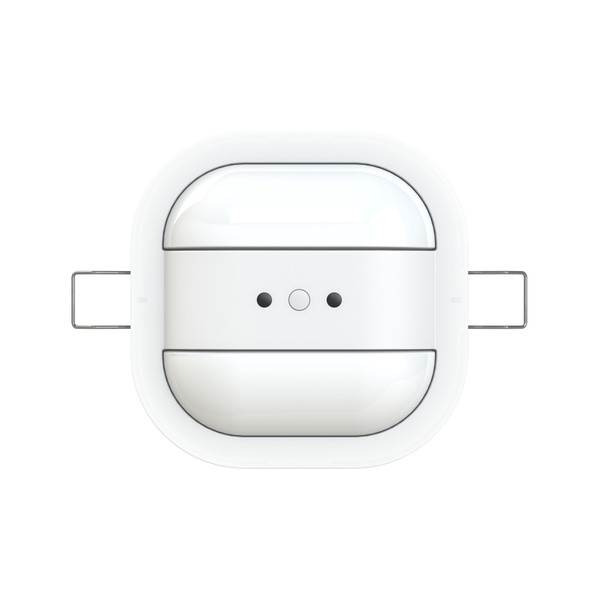

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 5 m, max. 6.5 m and max. 9 m. Walking persons Ø: max. 6.5 m, max. 8 m and max. 10.5 m. Visible height 16 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.
Pagina produttore - ABBKNXH0045
Scheda tecnica WEB
Immagini 360° - ABBKNXH0045
Caratteristiche tecniche
tipo di montaggio
A parete
colore
Bianco
larghezza (mm)
80
esecuzione
Segnalatore di presenza
altezza (mm)
80
profondità (mm)
45
superficie
Non trattato
protez. vs. strisciamento/sorveglianza zona post.
SI
profondità di incasso (mm)
29
numero di canali
2
sorveglianza del vano scale
SI
qualità del materiale
Materiale termoplastico
max. portata frontale (m)
6
max. portata da un lato (m)
8
sistema bus EIB/KNX
SI
sistema bus radio
NO
sistema bus Powernet
NO
accoppiamento bus incluso
SI
materiale
Plastica
altri sistemi bus
Senza
sistema bus LON
NO
ingresso stazione secondaria
SI
codice RAL (simile)
9016
funzione teach per luminosità di intervento
SI
commutatore del modo di funzionamento
NO
trasparente
NO
dispositivo di rilevamento animali
NO
esecuzione della superficie
Opaco
durata di funzionamento min. (s)
10
durata di funzionamento max. (min)
1092
luminosità di intervento regolabile
SI
ritardo di disinserz. con apprendimento automatico
NO
altezza di montaggio ottimale (m)
2
sistema bus radio KNX
NO
radio bidirezionale
NO
min. profondità della presa per apparecchi (mm)
29
Codice EAN
4011395185889
