Descrizione

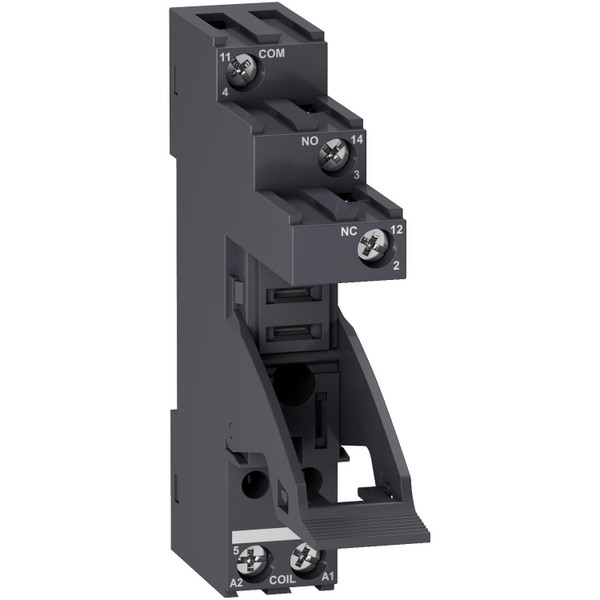

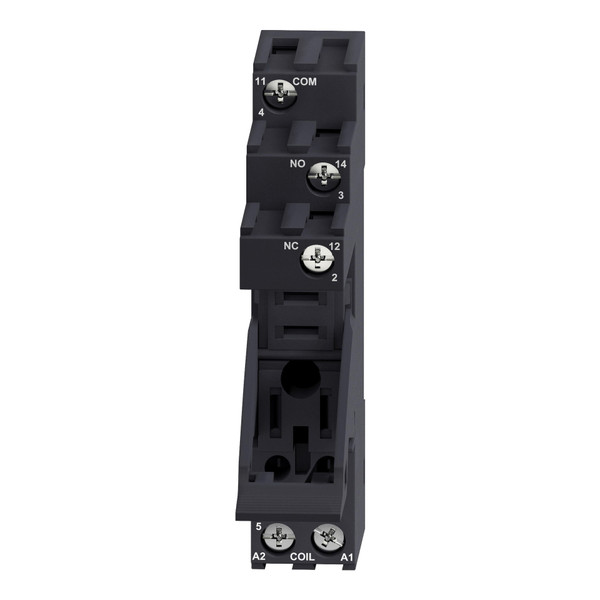

La presa per relè temporizzato RGZ di Schneider Electric ha morsetti di contatto separati. Ha un'uscita nominale di 10 ampere, una tensione nominale di 250 V e connettori a vite. Questo relè ad innesto è compatibile con tutti i relè Harmony RXG SPDT (1 C/O). Consente un'installazione a innesto rapida e semplice dei relè senza bisogno di attrezzi.
Scheda tecnica - SNRRGZE1S35M
PEP - Product Environmental Profile - SNRRGZE1S35M
Declaration DOC CE (Declaration of conformity CE) - SNRRGZE1S35M
REACh declaration - SNRRGZE1S35M
RoHS Eur declaration - SNRRGZE1S35M
Immagini 360° - SNRRGZE1S35M
Caratteristiche tecniche
tipo di montaggio
Guida DIN (top hat rail) 35 mm
larghezza (mm)
15.8
altezza (mm)
77.5
profondità (mm)
73
con morsetti amovibili
SI
integrazione funzionale possibile
SI
esecuzione del collegamento elettrico
Raccordo a vite
numero di pin
5
Codice EAN
3606480689437
