Descrizione

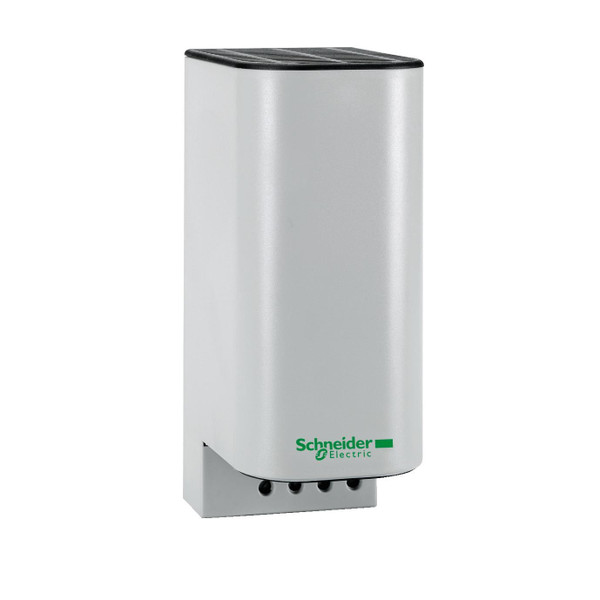

ClimaSys - Resistenza anticondensa isolata con sonda termica PTC. 50W, 110-250V AC, 50/60 Hz. Temperatura di funzionamento (da -40 a 70) °C. Collegamento elettrico: 4 morsetti a vite da 2,5 mm². Supporto di montaggio guida DIN da 35 mm. Corpo in alluminio estruso. IP20, classe di isolamento II. Protezione elettrica necessaria, da installare con un controller termico.
Scheda tecnica - SNRNSYCR50WU2C
User Guide - SNRNSYCR50WU2C
Declaration DOC CE (Declaration of conformity CE) - SNRNSYCR50WU2C
REACh declaration - SNRNSYCR50WU2C
RoHS Eur declaration - SNRNSYCR50WU2C
Immagini 360° - SNRNSYCR50WU2C
Caratteristiche tecniche
larghezza (mm)
60
altezza (mm)
110
profondità (mm)
90
tipo di tensione
AC
con termostato per ambienti
NO
con soffiante
NO
grado di protezione (IP)
IP20
potenza nominale (kVA)
55
tensione d’esercizio per AC 50 Hz (V)
110
tensione d’esercizio per AC 60 Hz (V)
110
potenza termica permanente a 10 °C (W)
55
tipo di protezione (NEMA)
1
Codice EAN
3606480152290
